FARINA PAVILION
PAVILION FOR TRADE SHOW AND EXHIBITIONS DESIGN FOR FARINA FORMWORKS.
installed in Las Vegas

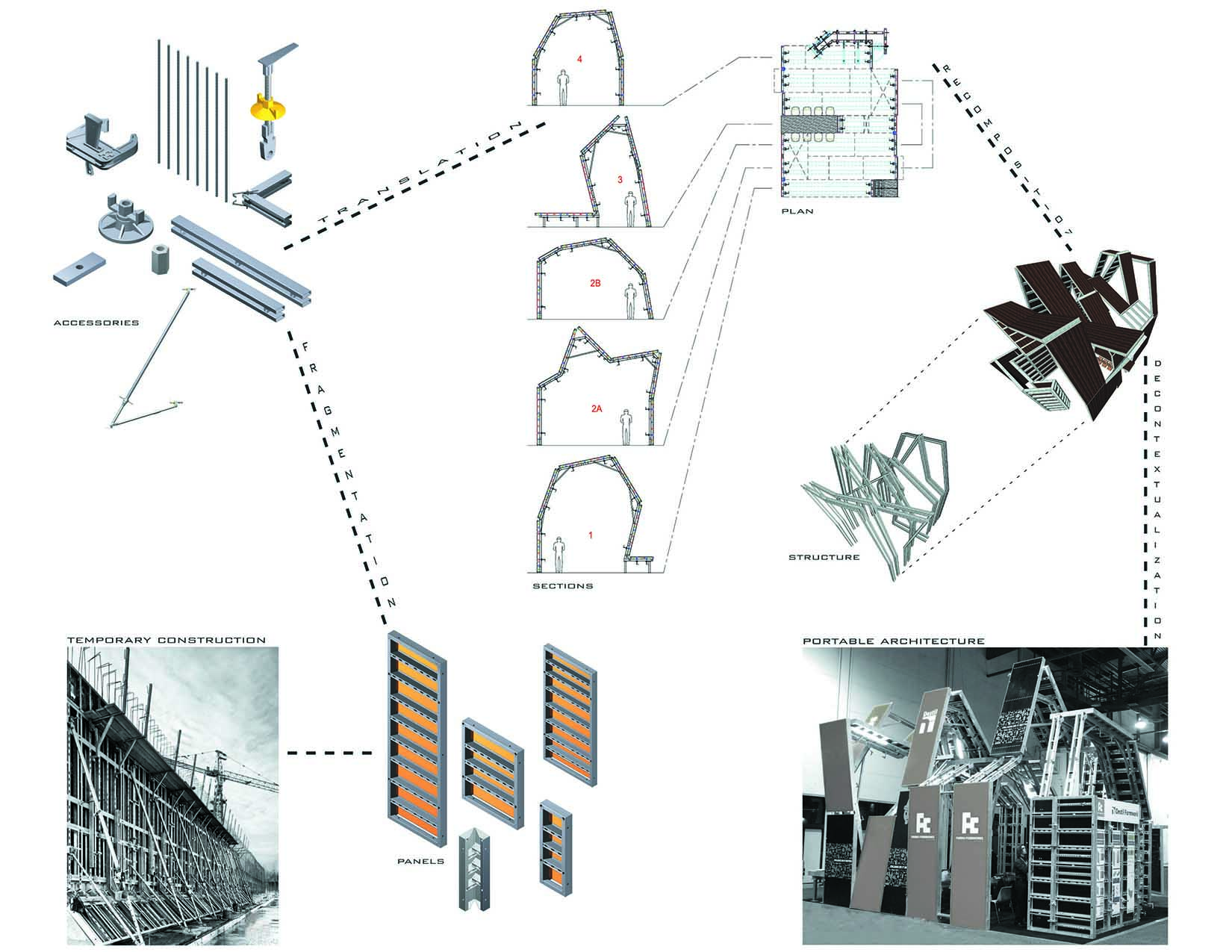

The design of the Farina Casseforme pavilion is a
provocative composition which transforms fragments of temporary construction--
the steel formworks panels-- into built architecture. the formwork system
becomes architecture through metaphorical translation of the steel fragments
into architectural language; thus the decision of designing the entire pavilion
with the formwork system.
The pavilion was designed to introduce the Italian
company Farina Formworks (Farina Casseforme), to the U.S. concrete
formwork market by debuting at the international show “The
World of Concrete” in Las Vegas in January of this year.
The heavy panels evoke a sensation of dynamic
lightness. these 400-pound panels, originally produced to hold
and form tons of fluid concrete up to a pressure of 80kN/m2,

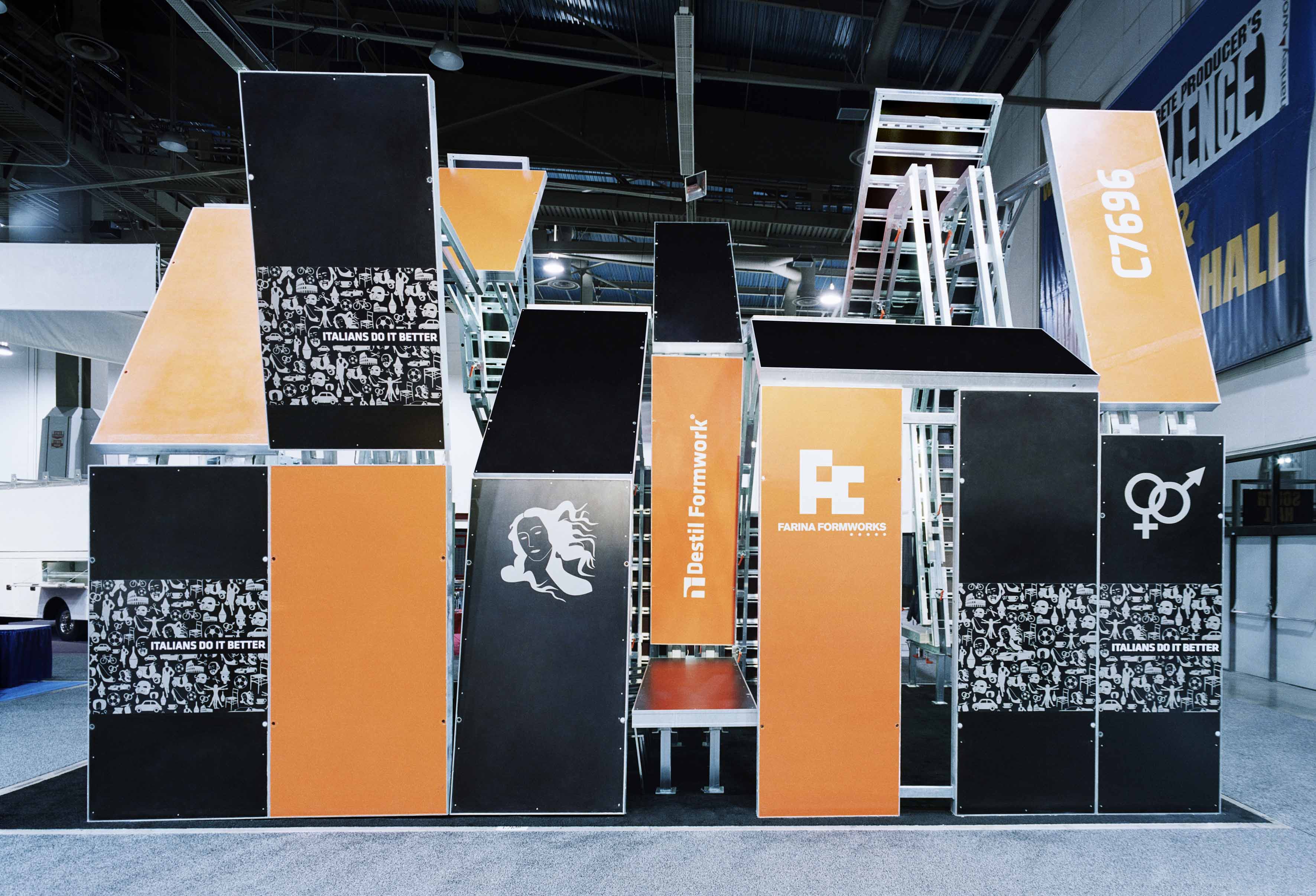

appear buoyant as they float and fold in a surreal setting. With the applied

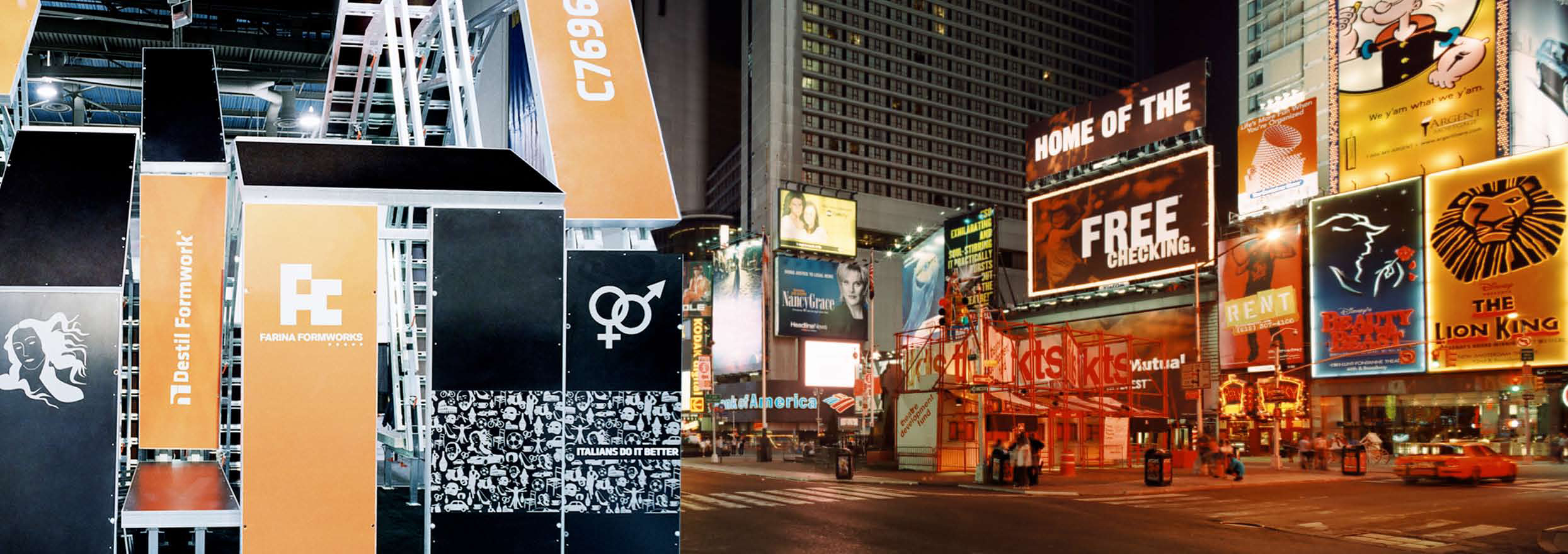

graphics, they are reminiscent of the billboards along the streets of Los
Angeles. However, these “billboards” with their controversial and ironic slogan
form a deconstructed cluster suspended in the air.
The modular system of exposed structural galvanized
steel, clamps, tie rods, and the phenolic resin-finished plywood are used out

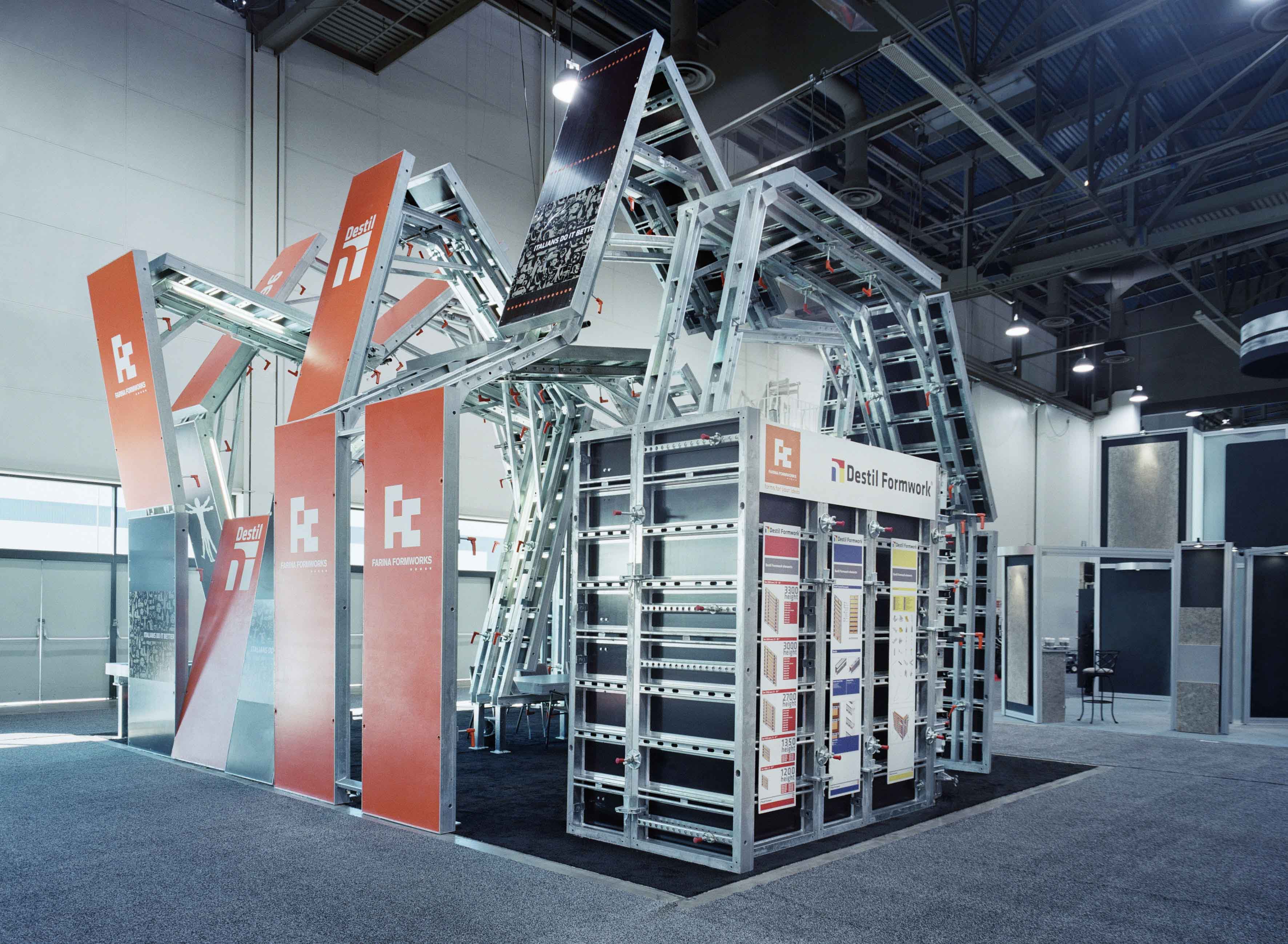

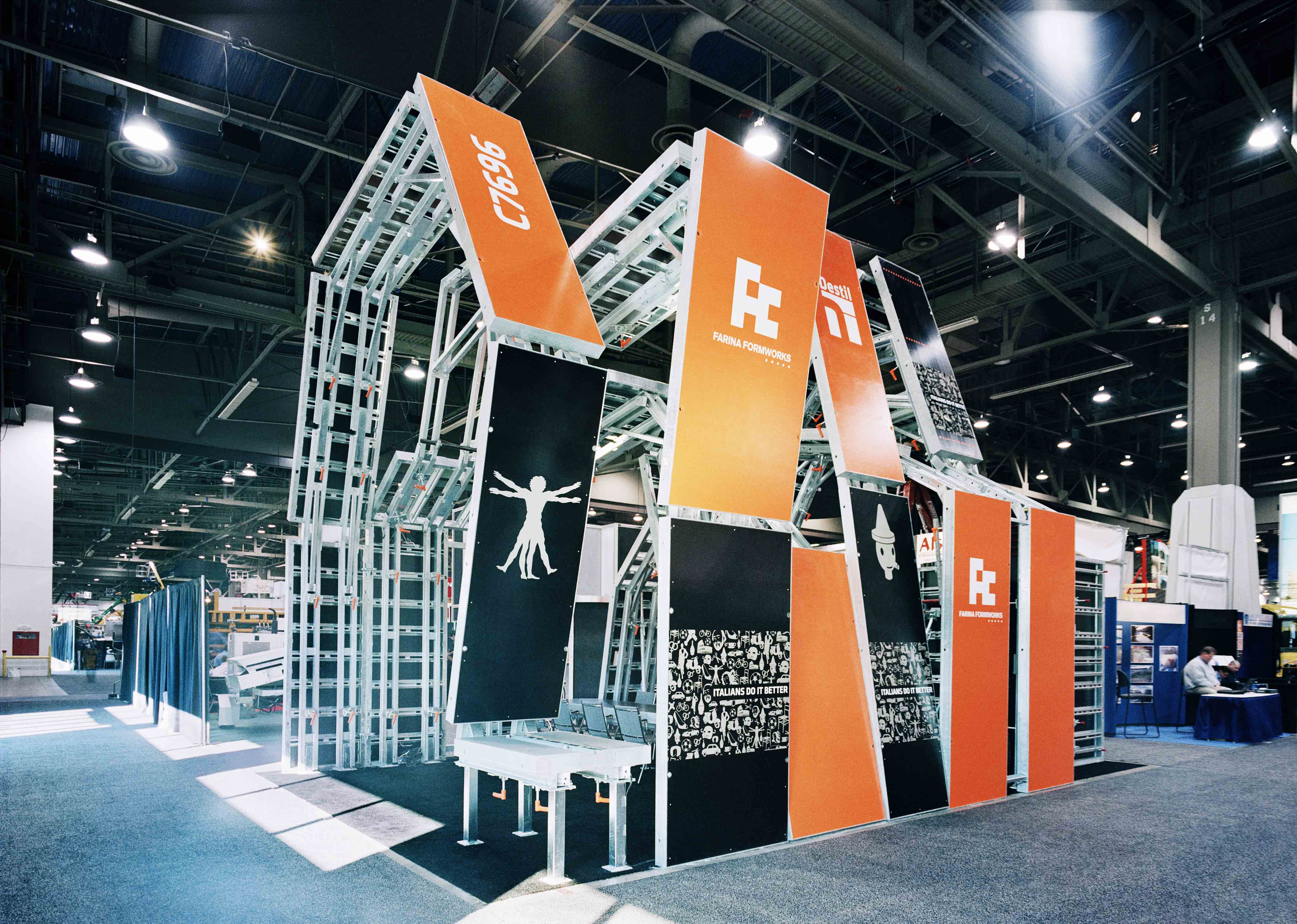

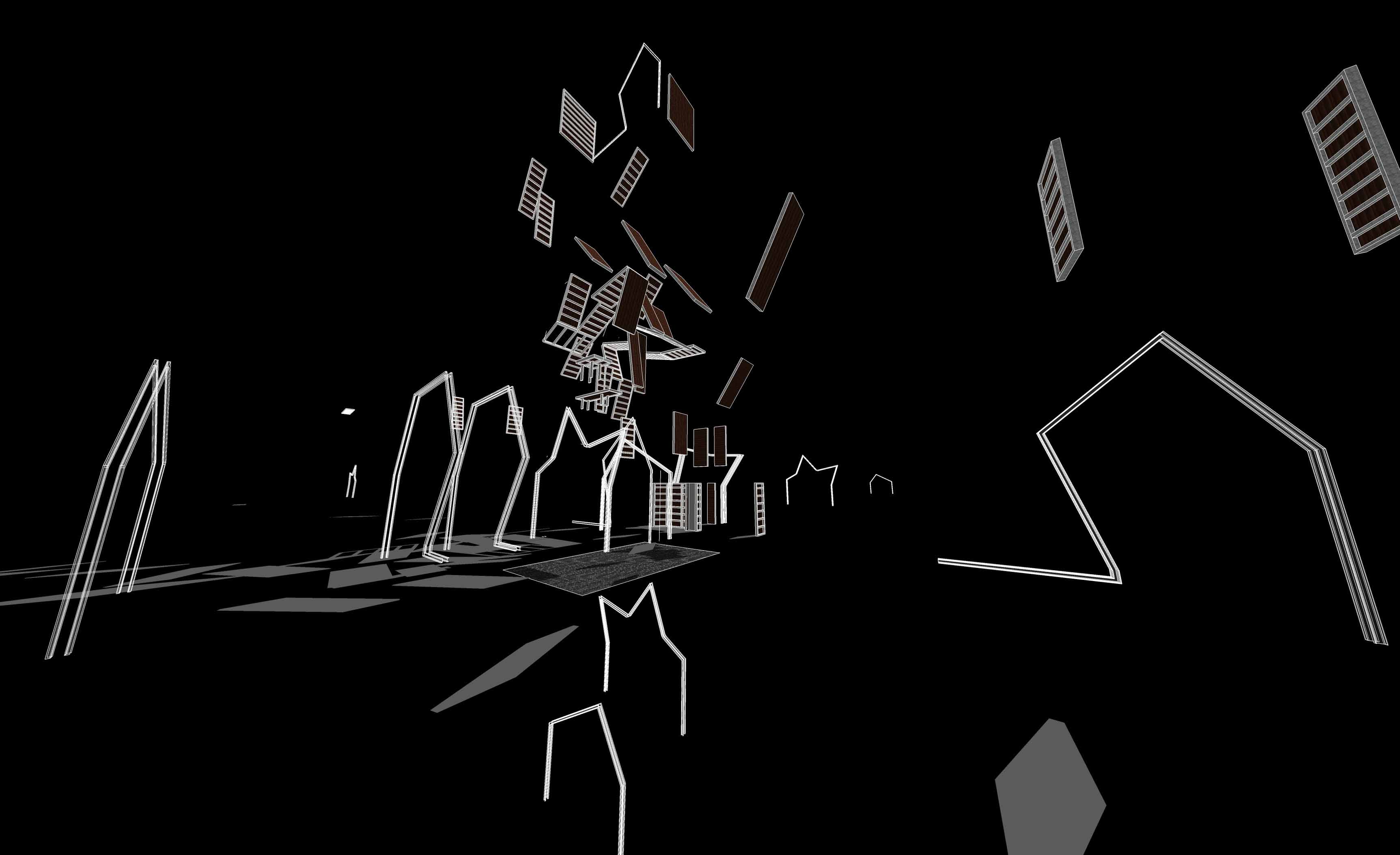

of context and become a new architectural language. The installation is composed of seven different folded

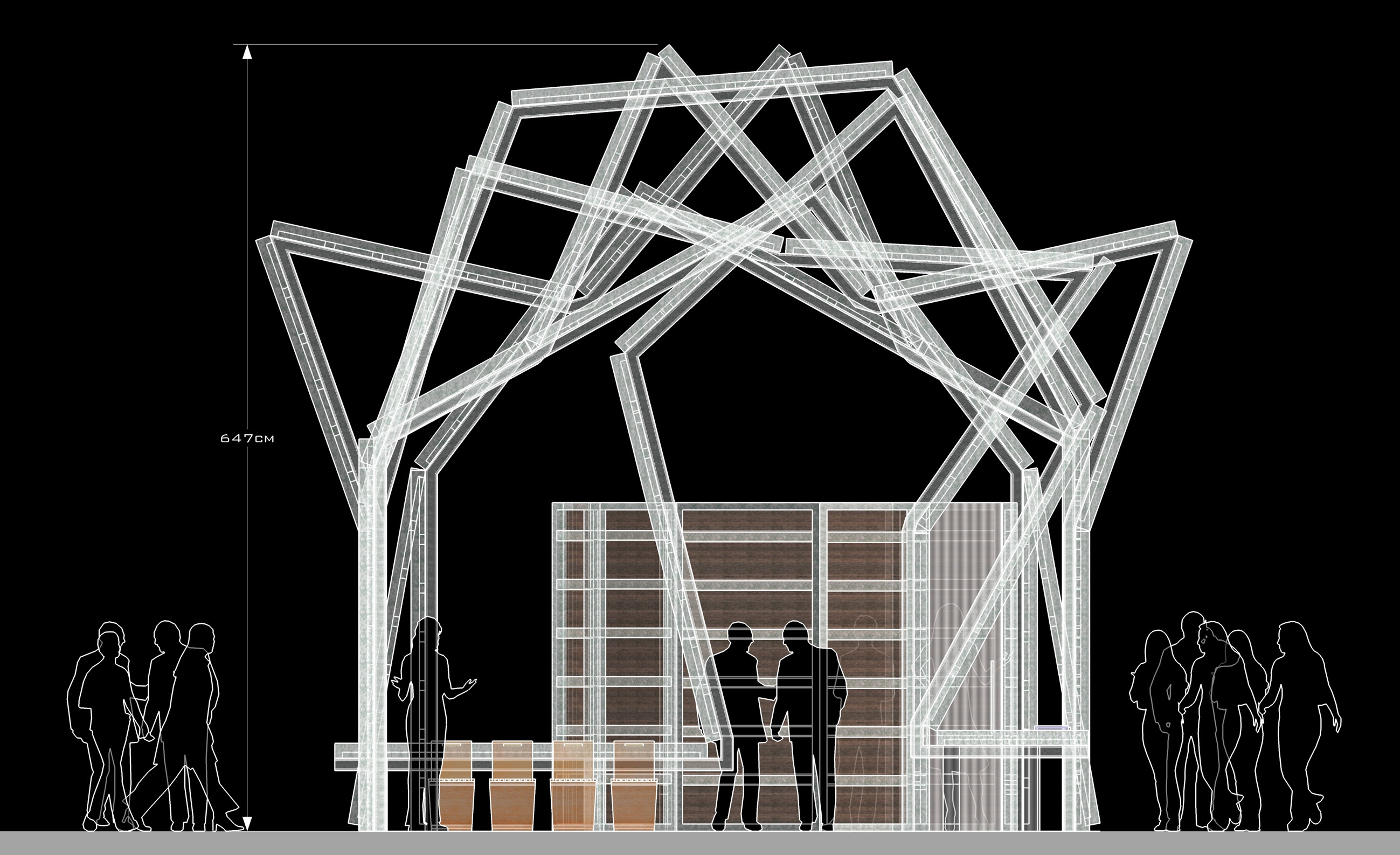

and fragmented portals of panels staggered to create a dynamic composition. The pavilion has a foot print of 30’x20’ and a maximum
height of 21’. In the front, the first portal folds down to become a

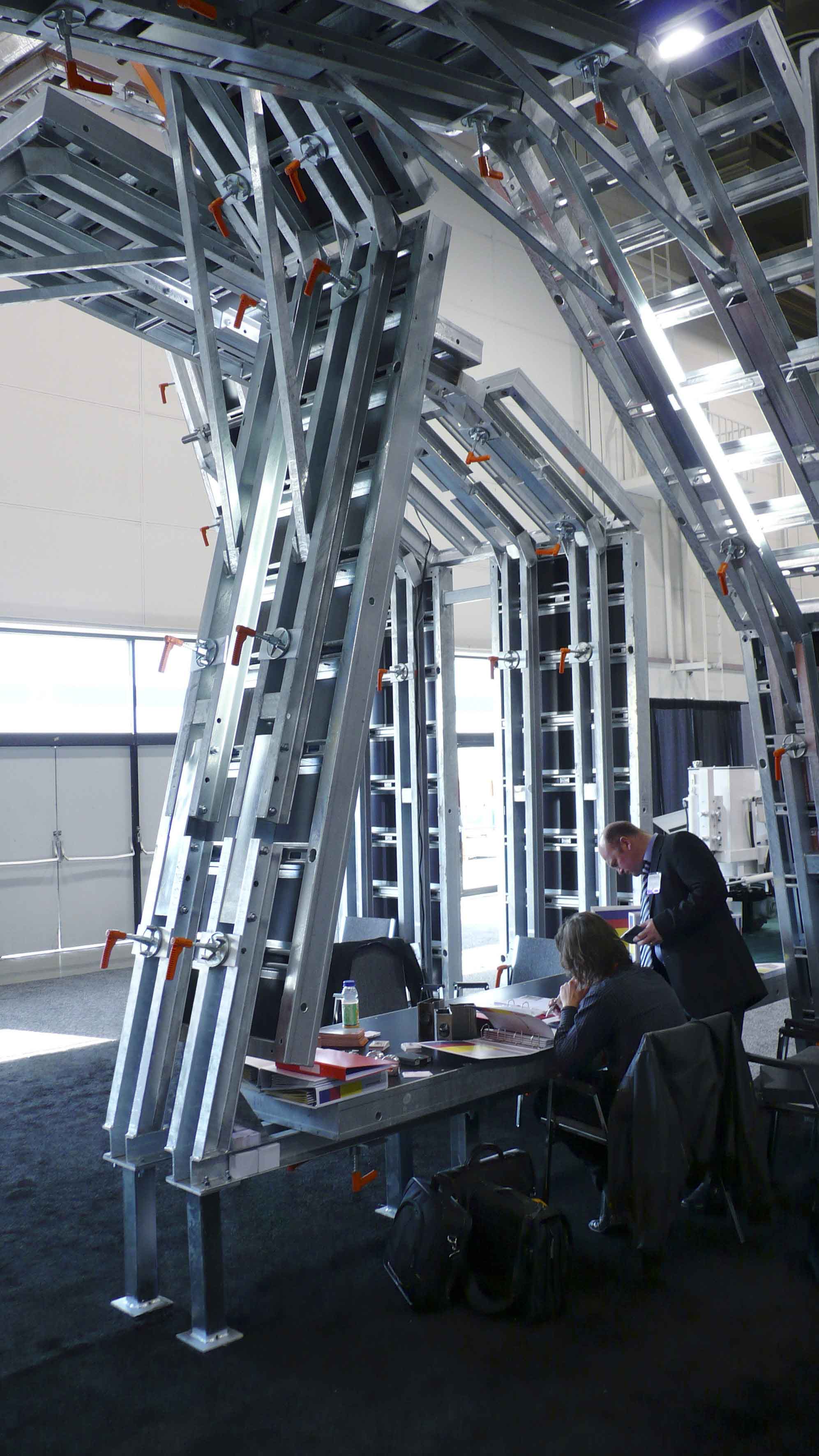

display table for brochures and flyers. In the middle, the panels curl inward becoming an 8ft
long desk to receive the guests of the show. In the back, the last portal bends on the ground to
become the formworks for a corner wall setting, thus displaying the typical
modular connection of concrete wall forms. Minimal linear fluorescent lights are hidden within
the structure and highlight the dramatic angled and fractured configuration of the panels.

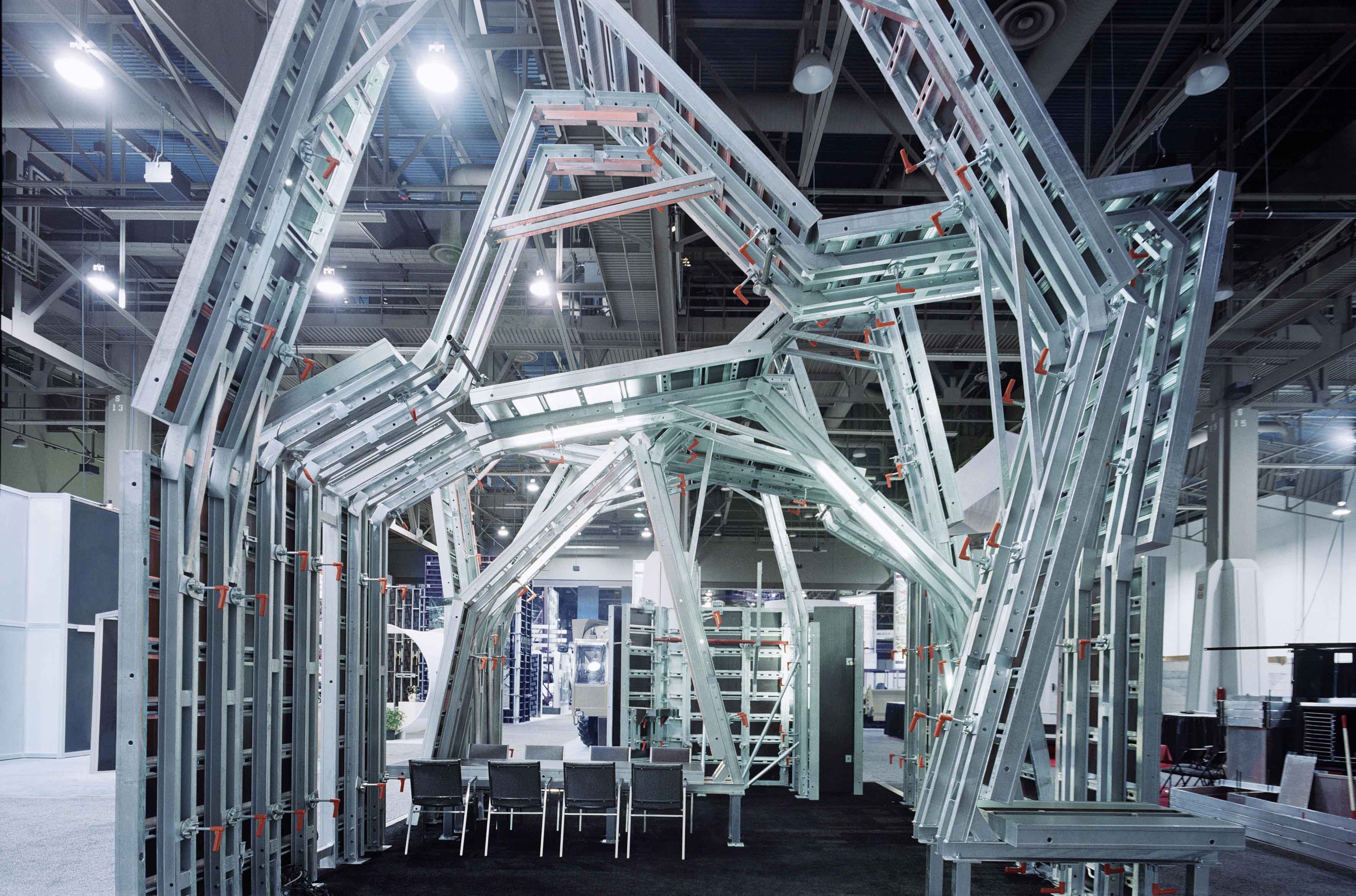

Structurally, the pavilion implements a series of
steel “angled arches” which support the panels. Each arch has a double channel
section welded to follow the configuration of the portals. The panels are fixed on the arches with universal
fixing bolts. The portals are braced to each other by the connection of
adjacent panels by quick acting clamps. All the steel elements and accessories are hot deep
galvanized.
The idiosyncratic aesthetic and mechanics of the
formwork system create a portable architecture which will now tour the world in
different trade shows.
